Loads Visual Editor Button

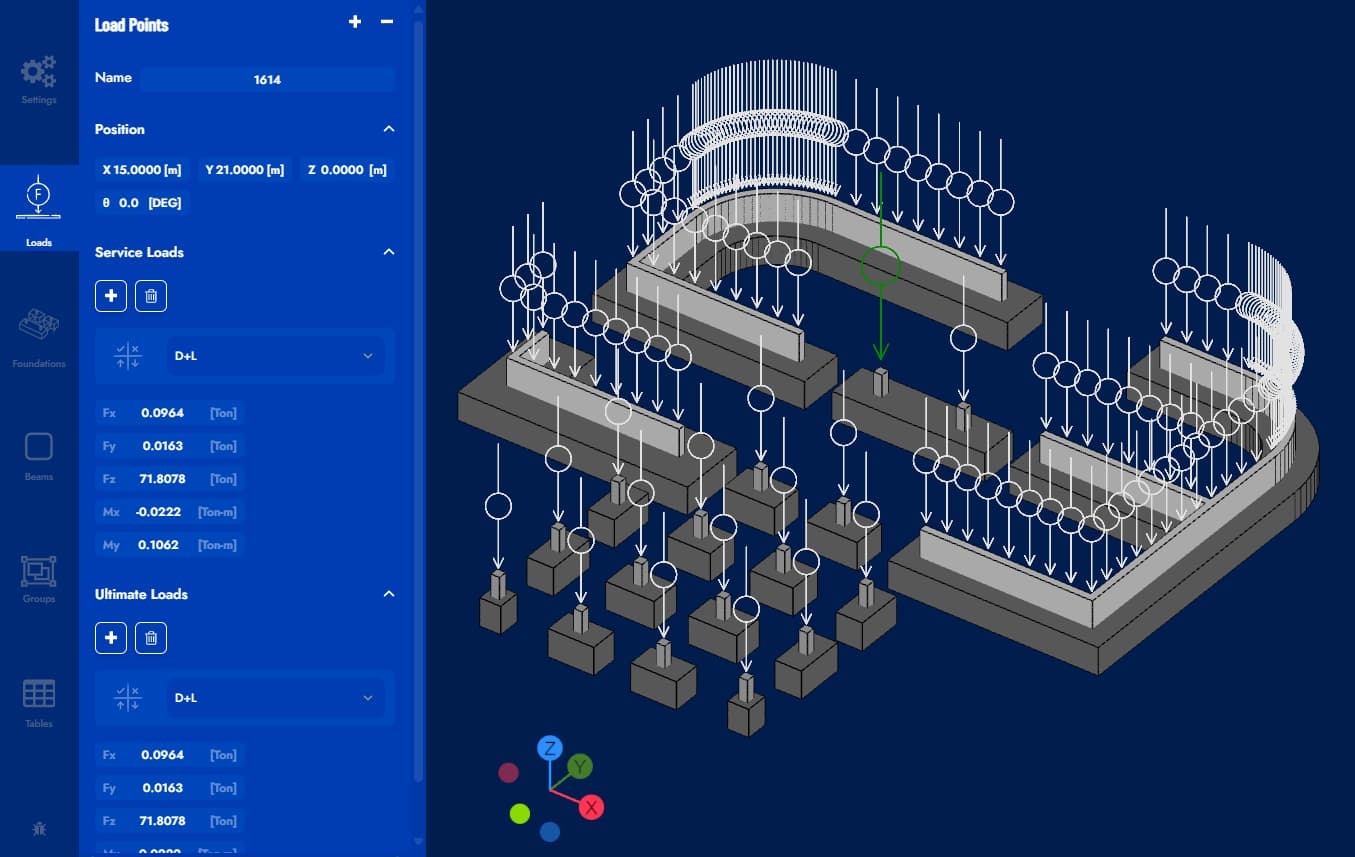

Select a load point in the model, and the dialog box displays all the load information for that point, according to the selected load combination.

Using the + and - buttons to the right of the dialog title, you can add or delete load points (a new load point will be added as an isolated foundation).

Whether in service or final loads, it is possible to add or delete load combinations and edit the values of forces and moments.
